ADH Technology Co. Ltd.


安達鑫科技有限公司

GP39-1513

GPS Module

  • GP39-1513
    GP39-1513
  • GP39-1513
    GP39-1513

Product Features

‧MediaTek high sensitivity solution
‧Support 66-channel GPS
‧Ultra low power consumption
‧Fast TTFF at low signal level
‧Built-in 12 multi-tone active interference canceller

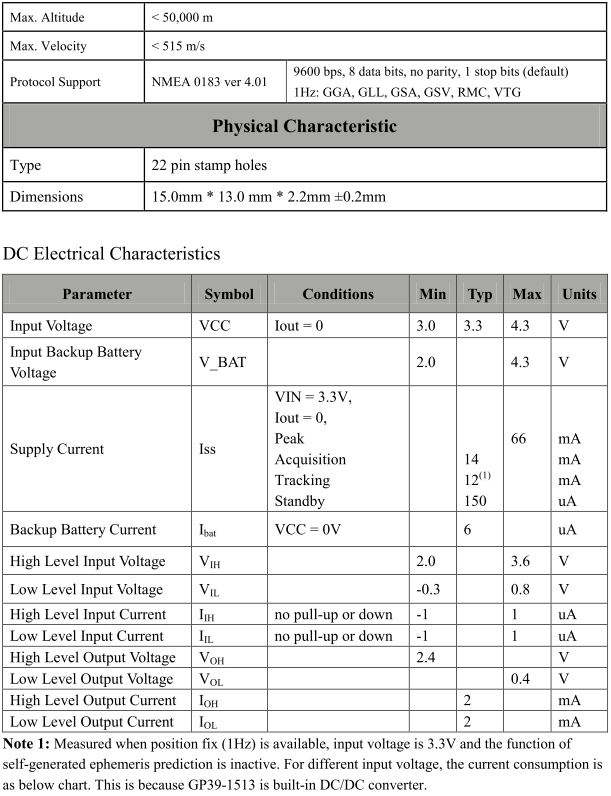

Product Specifications

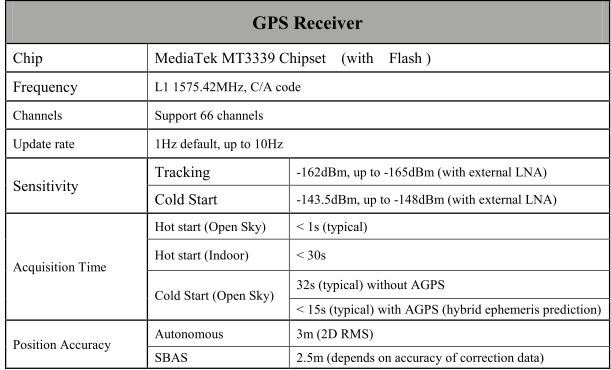

GNSS Receiver





‧Free hybrid ephemeris prediction to achieve faster cold start
‧Built-in data logger
‧Built-in DC/DC converter to save power
‧Up to 10 Hz update rate
‧±11ns high accuracy time pulse (1PPS)
‧Capable of SBAS (WAAS, EGNOS, MSAS, GAGAN)
‧Support Japan QZSS
‧Indoor and outdoor multi-path detection and compensation

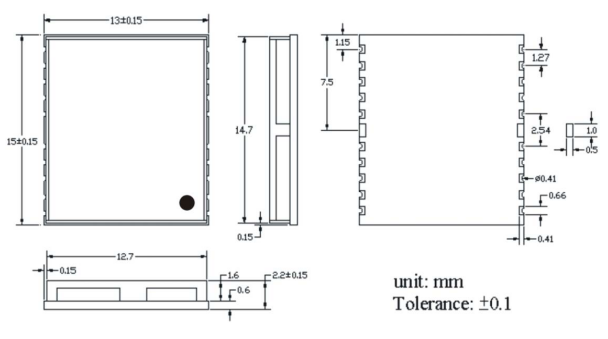

‧Small form factor 15.0 * 13.0 * 2.2 mm
‧SMD type with stamp holes
‧RoHS compliant
