ADH Technology Co. Ltd.


安達鑫科技有限公司

HF-105

Capacitive Fingerprint Sensor

Features:



  •  Spatial resolution 508 DPI
  •  2D sensor array of 160x160 pixels

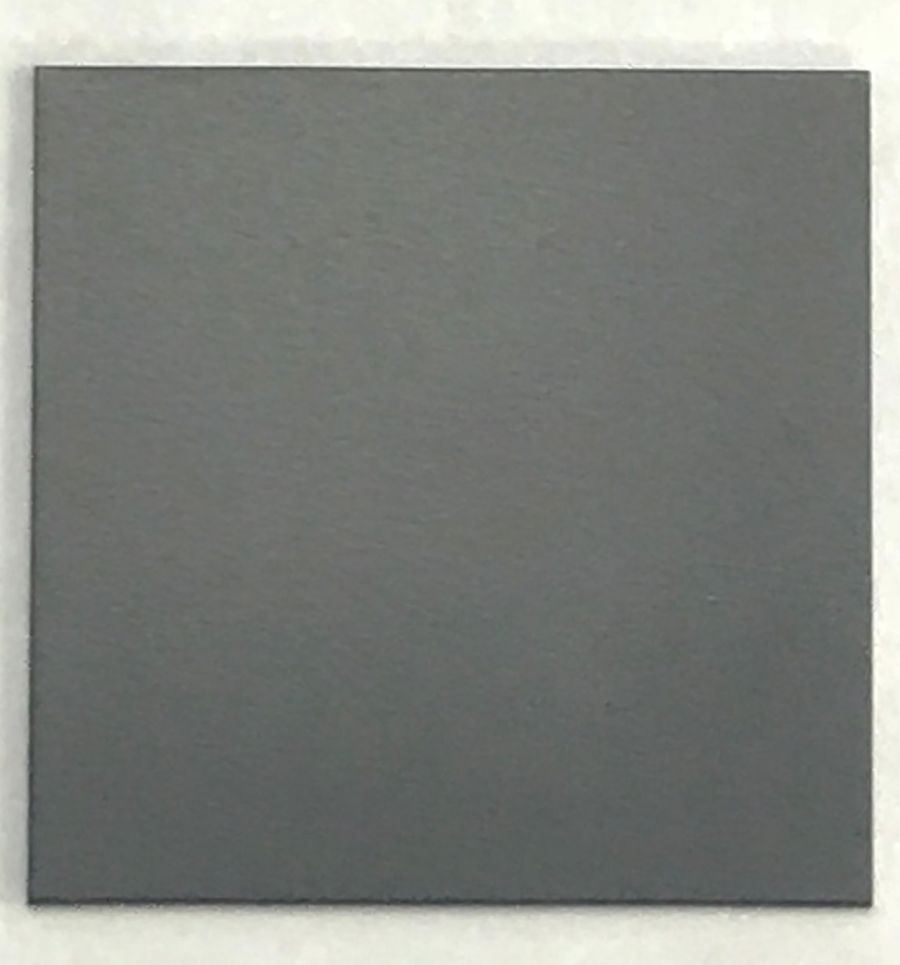

  •  Sensing area 8 mm x 8 mm

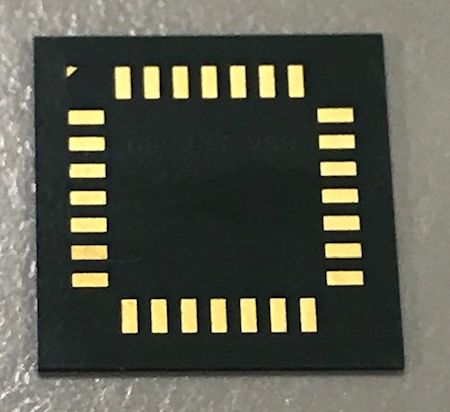

  •  Two types of SiP package size: HF105: 13.4mm x 13.9mm x 1.39mm       HF105T: 12.2mm x 12.2mm x 0.45mm
  •  IP67 dust and water resistant
  •  Build-in 8-bit ADC for digitizing image
  •  Build-in programmable voltage reference
  •  High speed SPI interface
  •  0.03 sec read out time
  •  128-byte on-chip data FIFO
  •  1.65Volt ~ 3.6Volt for I/O communication
  •  Windowing function to crop smaller image
  •  Finger detection function to detect finger on sensor
  •  Interrupt pin to wake up host when finger on sensor at sleep and standby mode
  •  1.5mA power consumption at standby mode
  •  150uA power consumption at sleep mode
